Address Component

The Address component inserts an address text field on the form. When a user completes this field they can use the following tools:

  • As the user enters an address, a geo-service automatically offers possible valid matching addresses from which a user can select to populate the field. If you do not want addresses to be validated in this manner, use the Text Field component.

    This service is not available in offline forms mode.

  • A location tool, adjacent to the field, allows a user to automatically insert their current location.

    To use the tool, a user must accept the following message that appears in their browser: studio.dev.juvare.com wants to Know your location (Allow or Block).

  • When a user completes the field, an x appears within the field that allows them to clear the field, if needed, to reenter the address.

Example of an Address Field Rendered on a Form

Address Component Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

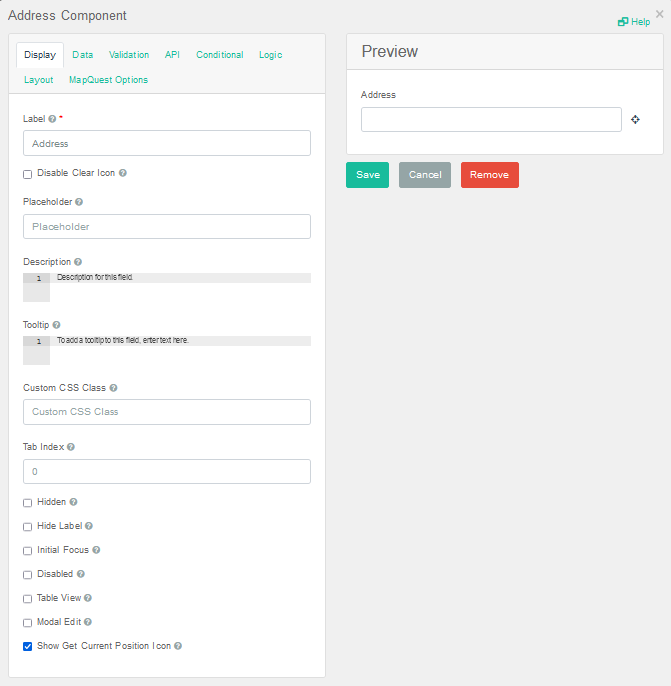

Address Component Settings Window

The following setting is necessary to render the component:

Address component settings fields (required)

Field

Description

Procedure

Label

(Display tab)

 Text that appears above the address field. Unlimited alphanumeric characters, including special characters.

The following setting is frequently used but is optional:

Address component settings fields (optional)

Field

Description

Procedure

Required

(Validation tab)

Adds a red asterisk to the end of the label indicating that the field is mandatory.

An error message displays if the user does not complete the field and the form cannot be submitted.

  • A selected checkbox indicates that the field is mandatory.

  • A cleared checkbox indicates that the field is optional.

Icons

The following tool icons are available:

Tool icons and descriptions
Icon Name What it Does Procedure
Settings Icon Settings Displays the settings window, in which you can modify the component’s settings.

To modify settings

  1. In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component.

    Form Icons

  2. Click the Settings icon.

  3. Modify the fields as needed. See Add Form Components.

  4. Click Save.
Move Icon Move

Moves the component to another position on the board.

This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.


Copy Icon Paste Icon

Copy

Paste

 Copies the current component and its settings and pastes it after the current component.

To copy the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Copy icon.

  3. Click the Paste below icon. A copy of the component appears below the original component.

  4. Click the Settings icon and modify the settings for the new component.

  5. Click Save to save the new settings for the newly-copied component.
Delete Icon Remove Removes the current component from the form.

To remove the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Remove icon.
