Day Component

The Day component inserts three date fields (Month, Day, and Year) on the form. Each field is validated separately.

We recommend that you use the Date/Time component instead of this one because this component does not provide a date picker.

Example: Day Field Rendered on a Form

Day Field Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

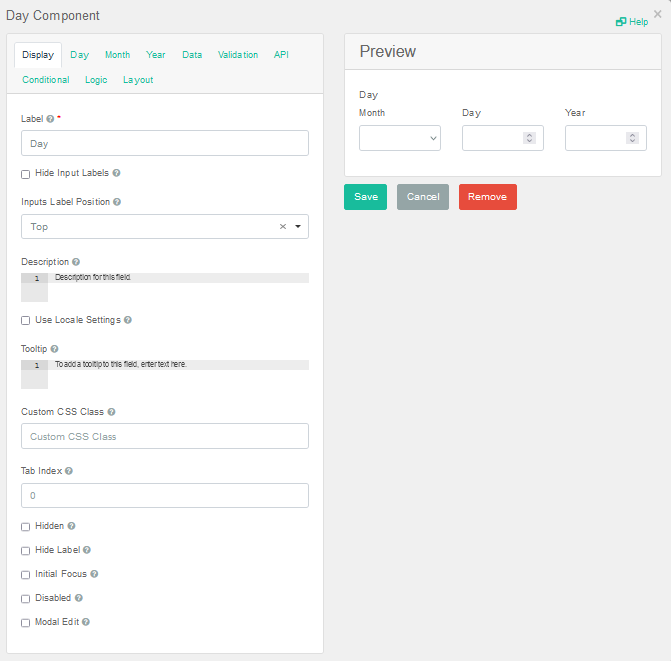

Day Settings Window

The following setting is necessary to render the component:

Day settings fields (required)
Field	Description	Procedure
Label (Display tab)	A unique identifier that appears as the label for the day fields.	Unlimited alphanumeric characters, including special characters.

The following settings are frequently used but are optional:

Day settings fields (optional)
Field	Description	Procedure
Inputs Label Position (Display tab)	Determines the positioning for the label.	Select one of the following options from the drop-down list: Top Left (Left-aligned) Left (Right-aligned) Right (Left-Aligned) Right (Right-aligned) Bottom Label position options set both where the label displays in relation to the component and how the label text is aligned. For example, if you select the Left (Right-aligned) option, the label displays to the left of the component with right-aligned text.
Use Locale Settings (Display tab)	Displays the date fields in the order of the local standard format.	A selected checkbox displays the date fields in the local standard format order. A cleared checkbox displays the time in the default format (yyyy-MM-dd).
Type (Day tab)	Determines if up and down arrows are used to cycle through numbers, or if the user can select the number from a drop-down list.	Select one of the following options: Number inserts up and down arrows in the Day field that allow the user to cycle through numbers. Select provides a drop-down list for the Day field from which the user can select the number.
Hidden (Day tab)	Hides the Day field.	A selected checkbox hides the Day field. A cleared checkbox displays the Day field.
Day First (Day tab)	Displays the Day field before the Month and Year fields.	A selected checkbox displays the Day field before the Month and Year fields. A cleared checkbox displays the Day field.
Require Day Require Month Require Year (Validation tab)	Adds a red asterisk to the end of the Day, Month, and/or Year field indicating that the field is mandatory. Each field is configured separately. An error message displays if the user does not complete the field and the form cannot be submitted.	A selected checkbox indicates that the field is mandatory. A cleared checkbox indicates that the field is optional.

Icons

The following tool icons are available:

Tool icons and descriptions
Name	What it Does	Procedure
Settings	Displays the settings window, in which you can modify the component’s settings.	To modify settings In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component. Click the Settings icon. Modify the fields as needed. See Add Form Components. Click Save.
Move	Moves the component to another position on the board. This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.
Copy Paste	Copies the current component and its settings and pastes it after the current component.	To copy the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Copy icon. Click the Paste below icon. A copy of the component appears below the original component. Click the Settings icon and modify the settings for the new component. Click Save to save the new settings for the newly-copied component.
Remove	Removes the current component from the form.	To remove the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Remove icon.
