Google reCAPTCHA v2 Component designstudio pro icon

reCAPTCHA Component

The Google reCAPTCHA v2 component inserts a reCAPTCHA on your form. reCAPTCHA is a security service that protects your form from fraud and abuse. Users are required to pass the reCAPTCHA test before they can submit the form. For more information about reCAPTCHA, see Google's reCAPTCHA Page.

reCAPTCHA is not supported in offline mode. Because reCAPTCHA requires access to its service to authenticate, if you want to publish the form while offline, you must remove this component.

Example of a reCAPTCHA Component Rendered on a Form Canvas

reCAPTCHA Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

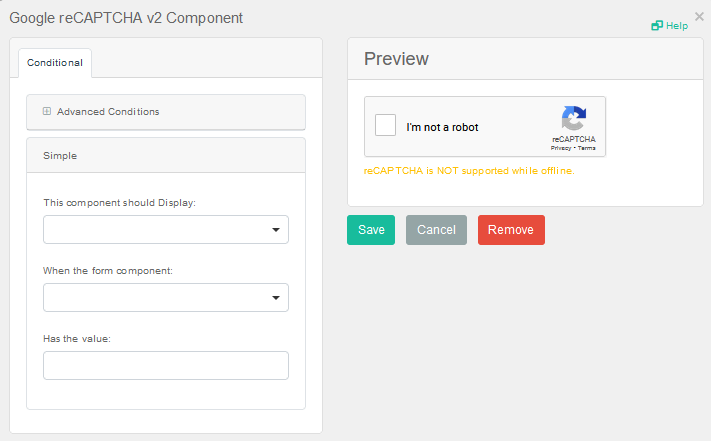

reCAPTCHA Component Settings Window

To add a reCAPTCHA component

  1. In the Security pane, drag and drop the component onto the canvas.

  2. In the Google reCAPTCHA v2 Component window, click Save.

Icons

The following tool icons are available:

Tool icons and descriptions
Icon Name What it Does Procedure
Settings Icon Settings Displays the settings window, in which you can modify the component’s settings.

To modify settings

  1. In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component.

    Form Icons

  2. Click the Settings icon.

  3. Modify the fields as needed. See Add Form Components.

  4. Click Save.
Move Icon Move

Moves the component to another position on the board.

This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.


Copy Icon Paste Icon

Copy

Paste

 Copies the current component and its settings and pastes it after the current component.

To copy the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Copy icon.

  3. Click the Paste below icon. A copy of the component appears below the original component.

  4. Click the Settings icon and modify the settings for the new component.

  5. Click Save to save the new settings for the newly-copied component.
Delete Icon Remove Removes the current component.

To remove the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Remove icon.
