Select Component designstudio pro icon

Select Component

The Select component inserts a drop-down list on a form that includes a search field. You determine the number of items and the labels for each item in the list.

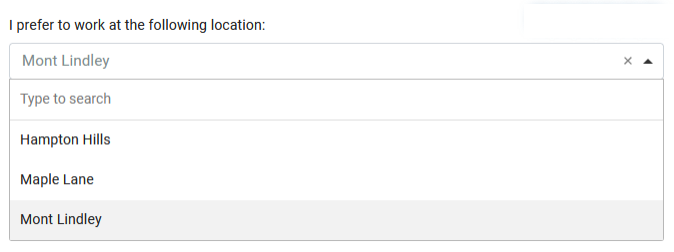

Example Select List Rendered on a Form (Three Items)

Select Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

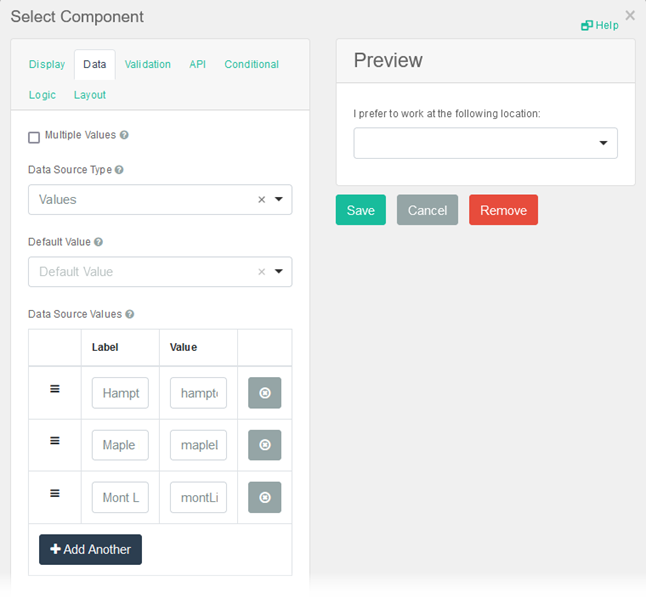

Select Component Settings Window

Select Settings Data Tab

The following settings are necessary to render the component:

Select settings fields (required)

Field

Description

Procedure

Label

(Display tab)

 Text that appears above the list. Unlimited alphanumeric characters, including special characters.

Values

(Data tab)

 Options that appear in the list.

To add list items

  1. In the Select Component window, click the Data tab.

  2. Under Data Source Values, in the Label field, enter the first list item.

  3. Click + Add Another to add an additional list item.

  4. Repeat steps 2 and 3 for each additional list item.

  5. Click Save.

The following settings are frequently used but are optional:

Select settings fields (optional)

Field

Description

Procedure

Label Position
(Display tab)

Position for the label of this list.

Select one of the following options:

  • Top

  • Left (Left-aligned)

  • Left (Right-aligned)

  • Right (Left-aligned)

  • Right (Right-aligned)

  • Bottom

Label position options set both where the label displays in relation to the component and how the label text is aligned. For example, if you select the Left (Right-aligned) option, the label displays to the left of the component with right-aligned text.

Widget Type

(Display tab)

The look of the list rendered using this widget.



Select one of the following options:

  • ChoicesJS provides a customizable widget.

  • HTML 5 is a standard HTML 5 list that is common to all browsers.

If you have compatibility issues with the list in browsers, use the HTML 5 widget.

Storage Type (Data tab)

The type of input the search field accepts.

Select one of the following options:

  • Autotype automatically completes the field with possible values as the user types.

  • String

  • Number

  • Boolean

  • Object

Icons

The following tool icons are available:

Tool icons and descriptions
Icon Name What it Does Procedure
Settings Icon Settings Displays the settings window, in which you can modify the component’s settings.

To modify settings

  1. In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component.

    Form Icons

  1. Click the Settings icon.

  2. Modify the fields as needed. See Add Form Components.

  3. Click Save.
Move Icon Move

Moves the component to another position on the board.

This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.


Copy Icon Paste Icon

Copy

Paste

 Copies the current component and its settings and pastes it after the current component.

To copy the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Copy icon.

  3. Click the Paste below icon. A copy of the component appears below the original component.

  4. Click the Settings icon and modify the settings for the new component.

  5. Click Save to save the new settings for the newly-copied component.
Delete Icon Remove Removes the current component from the form.

To remove the component

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Remove icon.
