Tabs Component

The Tabs component allows you to insert one or more tabs onto your form. Tabs act as containers that allow you to add multiple components on each tab on a form. Tabs are helpful to simplify a form with many components. For example, if you want each tab to represent a step in the completion of a form, you can create a Step 1 tab, Step 2 tab, and Step 3 tab, and so on.

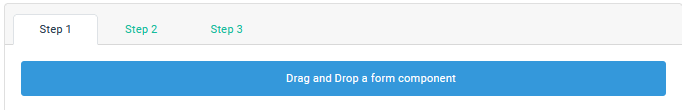

Example of Three Tabs Rendered on a Form Canvas

Tabs Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

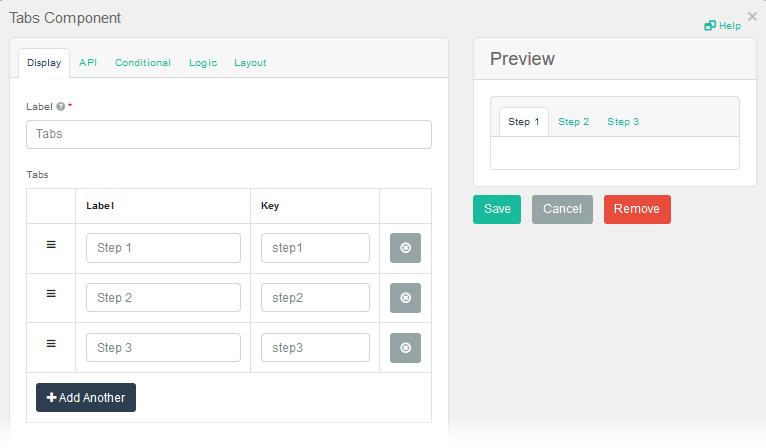

Tabs Component Settings Window

The following settings are necessary to render the component:

Tabs settings fields (required)
Field	Description	Procedure
Label (Display tab)	Text that identifies the component. This label does not appear on the form.	Unlimited alphanumeric characters, including special characters.
Label (Display tab)	Text on a tab.	Unlimited alphanumeric characters, including special characters.
+ Add Another (Display tab)	Adds another tab.	To add additional tabs Under the Tabs area, click + Add Another. A new tab row appears. In the newly-added row, in the Label field, enter the text for the new tab. Repeat steps 1 and 2 for the remaining tabs. Click Save.

Icons

The following tool icons are available:

Tool icons and descriptions
Name	What it Does	Procedure
Settings	Displays the settings window, in which you can modify the component’s settings.	To modify settings In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component. Click the Settings icon. Modify the fields as needed. See Add Form Components. Click Save.
Move	Moves the component to another position on the board. This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.
Copy Paste	Copies the current component and its settings and pastes it after the current component.	To copy the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Copy icon. Click the Paste below icon. A copy of the component appears below the original component. Click the Settings icon and modify the settings for the new component. Click Save to save the new settings for the newly-copied component.
Remove	Removes the current component.	To remove the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Remove icon.
