Tags Component

The Tags component inserts a field that accepts multiple tags on the form.

There is no tag equivalent in WebEOC. Tags are mapped to text fields.

Example: Tags Field Rendered on a Form

Tags Field Example

Settings

The settings for each component are grouped under tabs. While there are multiple tabs and many fields, some are applicable to advanced users (for example, the API and Conditional tabs and JSON fields) and you do not need to complete them to render the component. For this reason, the settings that are necessary are detailed for each component. In some cases, when an optional field is frequently used, it is listed in a second optional settings table. For tabs and fields that are not listed, advanced users are assumed to have pre-existing knowledge of how to work with them if they elect to apply them; however, they should be aware that the fields may not be compatible with WebEOC. Contact the Juvare Support Center at +1 (877) 771-0911 for additional information.

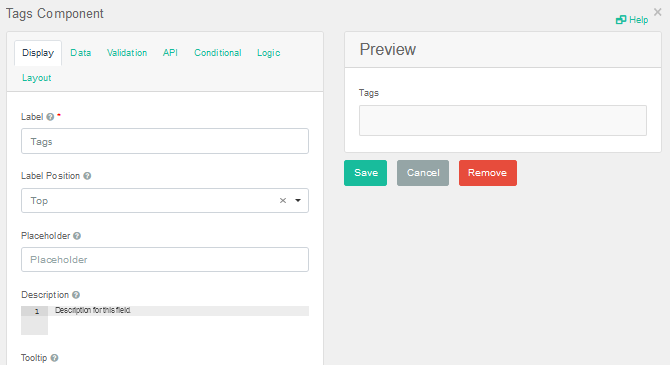

Tags Settings Window

The following settings are necessary to render the component:

Tags settings fields (required)
Field	Description	Procedure
Label (Display tag)	A unique identifier that appears as the label for the tags field.	Unlimited alphanumeric characters, including special characters.
Delimiter (Data tab)	Delimiter used for multiple tags.	Leave as comma (,).
Store As (Data tab)	How the tags are stored.	Leave as String (CSV).

The following settings are frequently used but are optional:

Tags settings fields (optional)
Field	Description	Procedure
Label Position (Display tab)	Determines the positioning for the label.	Select one of the following options from the drop-down list: Top Left (Left-aligned) Left (Right-aligned) Right (Left-Aligned) Right (Right-aligned) Bottom Label position options set both where the label displays in relation to the component and how the label text is aligned. For example, if you select the Left (Right-aligned) option, the label displays to the left of the component with right-aligned text.
Max Tags (Data tag)	Determines the maximum number of tags that a user can enter in the field.	Enter any number. The default value of 0 allows the user to enter an unlimited number of tags.

Icons

The following tool icons are available:

Tool icons and descriptions
Name	What it Does	Procedure
Settings	Displays the settings window, in which you can modify the component’s settings.	To modify settings In the Design area, move the mouse pointer over the component. A toolbar appears on the top right. The icons that appear depend on the component. Click the Settings icon. Modify the fields as needed. See Add Form Components. Click Save.
Move	Moves the component to another position on the board. This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.
Copy Paste	Copies the current component and its settings and pastes it after the current component.	To copy the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Copy icon. Click the Paste below icon. A copy of the component appears below the original component. Click the Settings icon and modify the settings for the new component. Click Save to save the new settings for the newly-copied component.
Remove	Removes the current component.	To remove the component In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Remove icon.
