CAD API Implementation Guide

The Post API for Ambulance CAD Data is used to update ambulance data in EMResource. This data is communicated using a JSON for REST web service.

With this API, EMResource receives ambulance data from CAD systems and aggregates the data to display the following information in EMResource.

1. Facility Information.

   1. Number of ambulances that have arrived at each facility.

   2. Number of ambulances en route to each facility.

   3. Number of ambulances at each hospital that have been waiting more than 30 minutes to offload their patient.

   4. Average wait time of ambulances that have arrived at the facility to offload patients.

   5. Maximum wait time of an ambulance that has arrived at the facility to offload patients

2. EMS Agency Information.

   1. Number of ambulances that have arrived at facilities.

   2. Number of ambulances en route to facilities.

   3. Number of available ambulances.

   4. Geolocation of each ambulance.

JSON

To send a message, the following information must be specified in the HTTP request.

Request

Authorization

Basic Auth: Username and Password (to be provided in a separate document).

Headers

Content-Type: application/json

Accept: application/json

Address

https://emresource.juvare.com/partnergateway/serviceendpoint/UpdateAmbulanceStatus/{Division}

Your Division will be provided in a separate document.

HTTP Method: POST

Body (Example)

                {
                    "ems_agency_id": "your EMS ID",
                    "ems_agency_name": "First Responders",
                    "vehicles": [
                        {
                            "vehicle_id": "b0417e04-02db-4e94-97f3-06eb1876610d",
                            "vehicle_name": "Med 7",
                            "facility_id": "your facility ID1f7e91e9-3f0b-498d-ac0f-07d22af50ef9",
                            "facility_name": "Memorial Hospital",
                            "status": "at_facility",
                            "arrival_time": "2022-05-04T17:00:10Z"
                        },
                        {
                            "vehicle_id": "0dcf6c00-792d-42fd-8bf4-42ccf7dd4c4a",
                            "vehicle_name": "Med 8",
                            "facility_id": "279dffba-9546-40c6-89e4-854382285253",
                            "facility_name": "Community Hospital",
                            "status": "en_route",
                            "arrival_time": "2021-11-04T18:01:10Z",
                            "lat": "40.13221143",
                            "long": " -74.00898606"
                        },
                        {
                            "vehicle_id": "60575b2a-7fff-4072-a016-0a59db003bb1",
                            "vehicle_name": "Engine 1",
                            "status": "available",
                            "arrival_time": "2021-11-04T18:02:10Z",
                            "lat": "40.13221143",
                            "long": " -74.00898606"
                        },
                    ]
                }


Response

Values

Example

The example below describes the various messages that are sent to EMResource.

For an example Postman file, contact Juvare.

Response (sample)

                {
                    "details": [
                        "Vehicle 1 - Id: West Essex Ambulance. ADDED"
                    ],
                    "summary": [
                        "Vehicles ADDED: 1",
                        "Vehicles ADDED WITH WARNINGS: 0",
                        "Vehicles UPDATED: 0",
                        "Vehicles UPDATED WITH WARNINGS: 0",
                        "Vehicles REMOVED: 0",
                        "Vehicles REMOVED WITH WARNINGS: 0",
                        "Vehicles WITH ERROR(S) - NOT MODIFIED: 0"
                    ]
                }


The Helicopter CAD Interface is available for Juvare’s clients that want to manage helicopter and other emergency vehicle statuses in EMResource. The interface uses a web service to communicate with the client’s CAD system, sending and receiving messages in XML format.

XML

To send a message using XML, the following information must be specified in your message.

Authorization

Basic Auth: Username and Password to be provided in a separate document

Headers

Content-Type: text/xml

Address

https://emresource.juvare.com/partnergateway/PartnerEndpoint

HTTP Method: POST

Header (Example)

                <?xml version="1.0" encoding="utf-8"?>
                <requestDefinition actionName='your action name' systemName='EMRESOURCE'
                divisionName='your division name'>
                </requestDefinition>


Body (Example)

                <resourceStatus>
                    <resource>
                        <resourceId>your resource ID</resourceId>
                        <name>your resource name</name>
                        <location>
                            <latitude>33.177238</latitude>
                            <longitude>-96.596908</longitude>
                        </location>
                        <availability>
                            <code>3001000</code>
                            <label>Available</label>
                            <commentText>testing</commentText>
                        </availability>
                        <lastUpdateTime>2022-04-15T14:47:00</lastUpdateTime>
                    </resource>
                </resourceStatus>


Values

Example

For an example Postman file, contact Juvare.

When sending data through a POST API, you can log into EMResource to verify the information was received. To do this:

1. Request a UI username and password from Juvare.

2. Go to EMResource and log in with the UI credentials.

3. Verify that the information is displaying correctly.

If you receive a message when you submit the API, locate it in the examples below and attempt to resolve the issue. If you need assistance, contact Juvare.

Error Message: SOAP-ENV:ServerEMSystem is unable to process this request

There are two possible reasons for this error:

• The web service username and password contains a forbidden special character.

• More than one of the same Standard Status Type is used in the region.

If you receive this message, contact Juvare.

Error Message: SOAP-ENV:ServerUser is not authorized for the target

This message likely appears because the web service user is not listed in the interface. If you receive this message, contact Juvare.

Error Message: Please specify a username and password following the HTTP Basic Authentication

The URL listed in your message is likely pointing to the wrong address. If you receive this message, contact Juvare to verify the URL.

Error Message: User May Not Update Status

There are two possible reasons for this error:

• The status type is not currently being queried by the region (for example, it is an event only status type).

• The status type is being queried by the region, but the event does not include that resource.

If you receive this message, contact Juvare.

Your web service username and password can be used to access the EMResource Interface Summary, which includes the following information:

• Action Name

• Division Name (also known as the Interface Key)

• Address or URL

• Participating Resources and corresponding IDs

• Status Names

• Multiple choice options for multichoice statuses

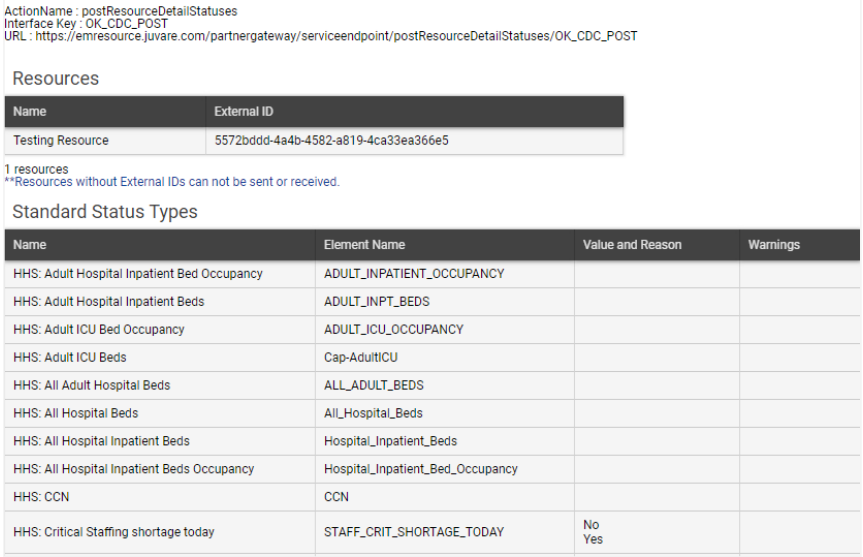

To access the Interface Summary

Go to EMResource and log in using the web service username and password provided by Juvare.

1. On the upper left, in the main menu, select Setup then select Interface Dashboard.

2. For interface, select Summary.

3. Review the interface information on this page and as needed, update the details.

For more information, contact the Juvare Support Center at support@juvare.com or 877-771-0911.
