Notification Recipients Component Nexus Component Styling

Notification Recipients Component Classic Styling

Notification Recipients Component

The Notification Recipients component notifies specific users when a board is updated when a record is saved (for example, users receive a text message when the board is updated).

The Notification Recipients component is supported in the Input view and is found in the Data Entry section of the Components tray.

This feature requires WebEOC 9.12 and later.

Notification Recipients Component

When the board is updated, the user clicks a Select button and then selects users to be notified from a list.

See Add Board Components for details about adding components to a view.

Settings

If you use the Classic Styling, these settings are set in a dialog that opens after you drop the component on the canvas. If you are using the Nexus Component Styling, these settings are set on the Properties tab after you drop the component on the canvas.

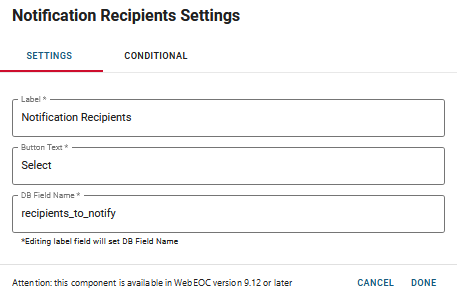

Notification Recipients Settings Window

The following settings are available.

Notification Recipients settings

Field

Description

Procedure

Label

A unique identifier that briefly describes the component in the user interface.

Enter between 2 - 50 alphanumeric characters, excluding special characters.

Button Text

The text that appears on the button in the board (for example, Notify). The user clicks this button and then selects the users to be notified.

Enter between 2 - 50 alphanumeric characters, excluding special characters.

DB Field Name

A unique identifier that briefly describes the component in the database table.

 Enter between 2 - 50 alphanumeric characters, excluding special characters.

Conditional

The following Conditional settings are available.

Conditional settings

Field

Description

Procedure

Conditional Settings

The component only appears when certain conditions in relation to another component are met.

See Add a Conditional Component.

Actions Toolbar

The following actions are available when you select any component on the canvas in the Board Workspace when working with Nexus Component Styling.

Actions descriptions
Icon Name Description Procedure
Settings Icon

Settings

Opens the Properties tab next to the Components Tray.

You can modify the component’s settings, such as label, database field name, help text, style, and conditional settings.

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Settings icon. The Properties tab displays on the right next to the Components tray.

  3. Update the settings as needed.

    Changes display in real time.

Move Icon

Move



This icon is not used.

To move the component, click and drag it to its new location.
Copy Icon

Clone

Copies the current component and its settings, then pastes it after the current component.

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Clone icon. The Properties tab displays on the right next to the Components tray.

  3. Edit the settings for the cloned component.

    Changes display in real time.

Delete Icon

Delete

Deletes the selected component.

  1. In Design mode, click the component on the canvas. A toolbar appears on the top right.

  2. Click the Delete icon.
