Time Component

The Time component inserts a time-input component onto the canvas.

The Time component is supported in the Input view.

Settings

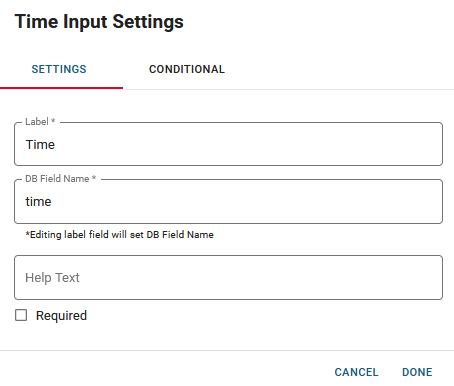

Time Input Settings Window

The following settings are available.

Time Input Settings fields
Field	Description	Procedure
Label	A unique identifier that briefly describes the component in the user interface.	Enter between 2 - 50 alphanumeric characters, excluding special characters.
DB Field Name	A unique identifier that briefly describes the component in the database table. The text in this field becomes the database field name.	Enter between 2 - 50 alphanumeric characters, excluding special characters.
Help Text	The tooltip that appears when the pointer is over the field.	Enter between 2 - 50 alphanumeric characters, excluding special characters.
Required	Indicates that the component is a required field. The user sees an error message if the field is not completed.	Select the checkbox to enable the option.
Conditional Settings	The component only appears when certain conditions in relation to another component are met.	See Add a Conditional Component.

Icons

The following tool icons are available.

Tool icons and descriptions
Icon	Name	Description	Procedure
	Settings	Displays the settings window, in which you can modify the component’s label, database field name, help text, and conditional settings.	In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the Settings icon. Modify the fields as needed. See Add Board Components. Click Done.
	Move	Moves the component to another position on the board. This option is useful with touch pages. If you are not using a touch page, you can drag the component to its new location.
	Copy	Copies the current component and its settings and pastes it after the current component.	In Design mode, click the component on the canvas. A toolbar appears on the top right. Click the icon. In the settings window, modify the details, as needed. Click Done. The new component is inserted after the original component.
	Delete	Deletes the current component.	Click the Delete icon.
