Grafana

Grafana is an open source interactive data-visualization platform, developed by Grafana Labs, which allows users to see their data via charts and graphs that are unified into one or more dashboards for easier interpretation and understanding.

To set up and configure Grafana, follow the instructions by expanding the headings below.

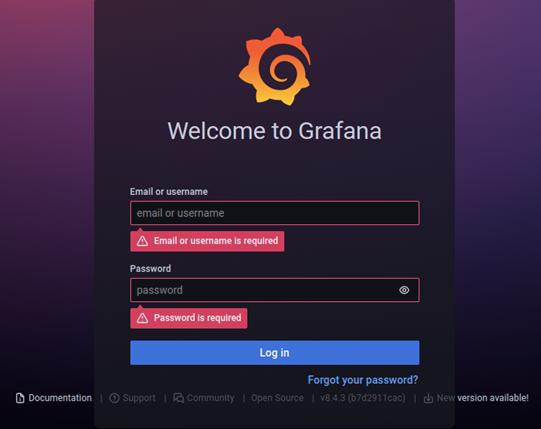

Grafana login page showing email/username and password fields.

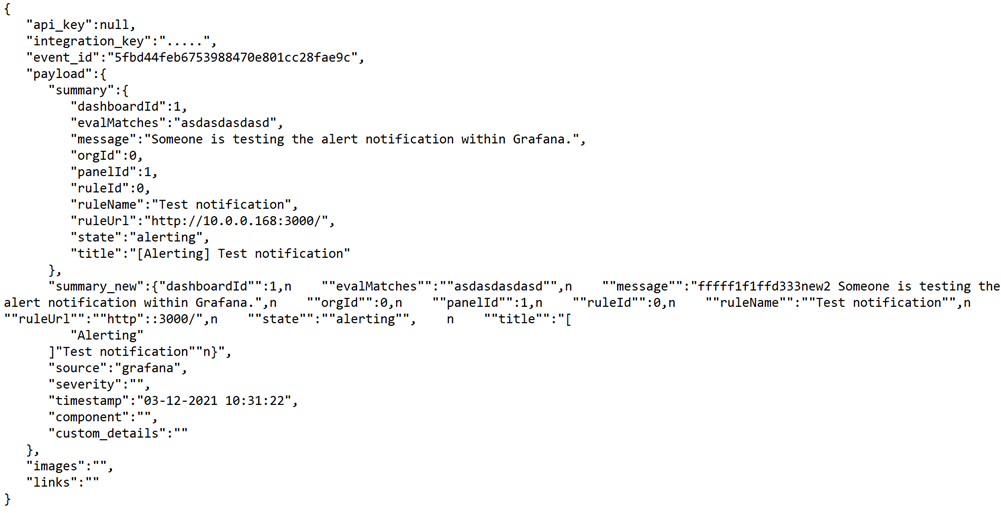

Event In sample object showing Grafana alert payload structure.

  1.  Click Menu then Alerting then Notification Channels.

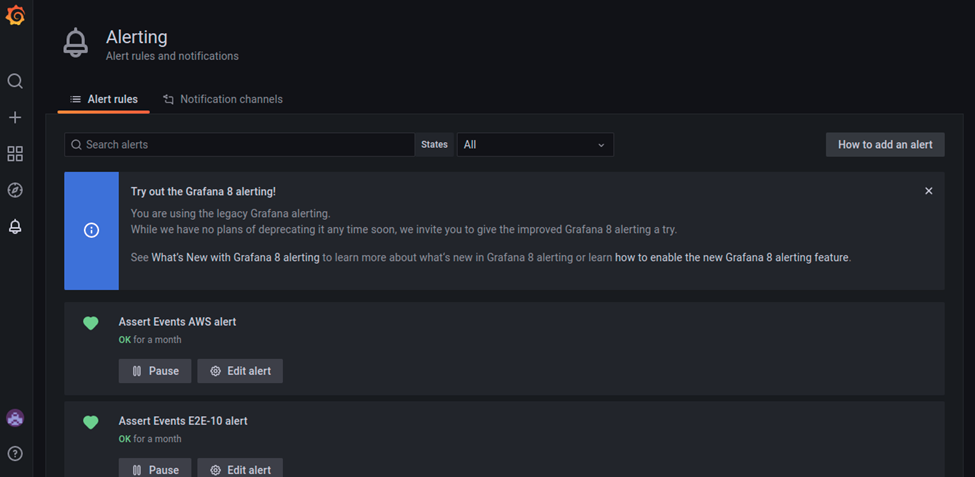

    Grafana Alerting page showing alert rules and notification channels.

  2. Click the + New Channel button.

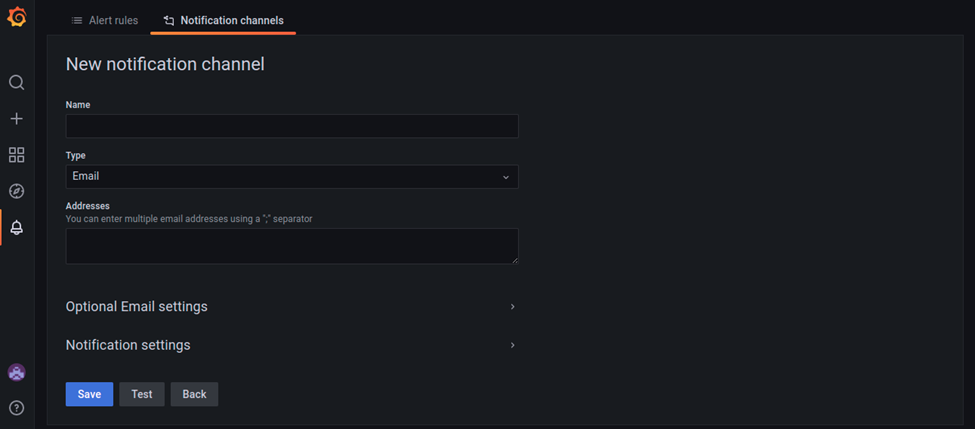

    New Notification Channel page showing channel setup fields.

  3. On the New Channel form, enter the following:

    • Name: an appropriate Name (example: PagerTree Webhook)

    • Type: webhook.

    • Send on all alerts: enabled.

    • Include image: enabled.

    • URL: Paste the PagerTree Endpoint URL you copied.

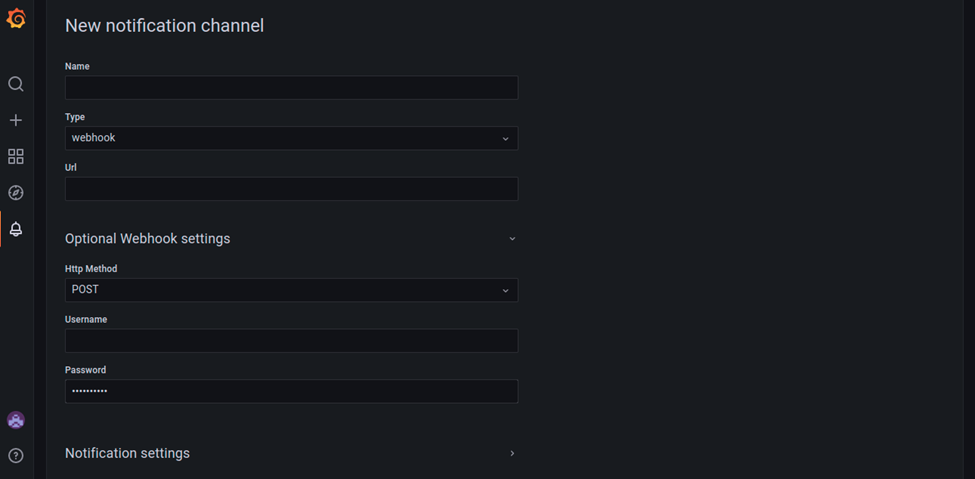

      New Notification Channel page showing webhook configuration fields.

  4. Click Save.

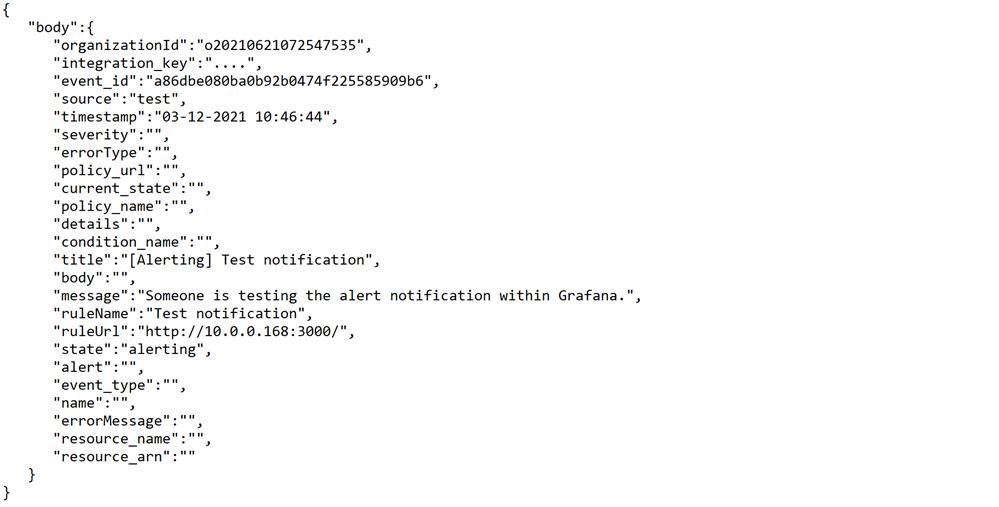

Event Out parsed object showing Grafana webhook output payload.
